Chromlab Analytical

Chromlab®

Chromlab Analytical® Sample Vials,
Caps and Septa

Chromla® Autosampler vials
Chromlab Analytical® Autosampler vials are manufactured from glass meeting the international standards for hydrolytic extraction, ASTM E-438 Type 1 class A borosilicate glass, compliant with the requirements of U.S. and European Pharmacopeia which improves your laboratory productivity, by reducing costs and saving time. With a portfolio of over 1500 products to fit different autosampler, our high-quality vials, vial inserts, closures and septa will perform reliably in any application. These products considerably reduce the risk of analytical test results compromised by ghost peaks, damaged needles or dislodged septa, decreasing analysis failures and sample reruns.


Vials Feature

  • Clear glass vials--made from USP Type I, Class A, 33 Borosilicate Expansion glass, with lowest leaching characteristics and a linear coefficient of expansion of 33.
  • Amber glass vials²made from USP Type 1 Class B, 51 Borosilicate Glass. (All amber borosilicate glass is made of Class B unless otherwise specified and has an expansion
  • Dimensional--Computerized camera system for quality control throughout the manufacturing process to test critical dimensions, including Height, Diameter, Bottom Thickness and Neck/Thread.
  • Compatible with a wide range of HPLC, LCMS and GC Instruments.

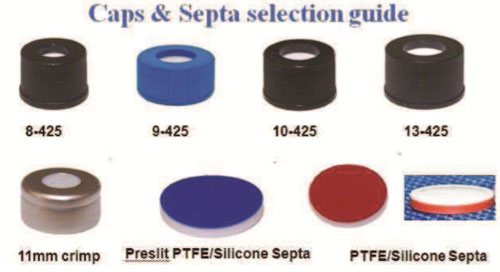

Chromlab Analytical® Caps/ Septa

Vial cap septa are a critical link to optimal analysis. Each septum is specified to complement the overall system and enhance chemical performance.

Chromlab Analytical® vial cap septa are specially formulated and constructed to provide optimum system performance with minimal coring and superior chemical inertness.

The softness or hardness (durometer) is matched to the instrument and designed to work well with syringes and samples.

The size of the septum is critical to proper sealing. All Chromlab Analytical® septa are specifically sized for proper sealing. Chromlab Analytical® septa have a special detail built into the cap to the specific septa coring and eliminate the need to replace caps with extended usage.

Chromlab Analytical® Cap²made of high quality polyproylene to exact manufacturing tolerances and lined in a controlled manufacturing environment, tested by head space GC to ensure proper curing of silicone polymer







2ml 8-425 Screw neck autosampler via

  • The original, smaller opening vial with an 8-425 thread size screw cap.
  • The dimensions of autosampler vials are various. They are designed to work in a variety of autosamplers requiring narrow neck vials.
  • Available with black caps and a variety of septa to meet the needs of your application.

Please check the specific size of the autosampler and Chromlab Analytical® 8-425 2ml vials design as picture in right




Order Information








2ml 9-425 Screw neck autosampler vial

  • 9-425 screw top vials is 40% larger opening than standard narrow opening vials.
  • The Universal Autosampler Vial:

» It is dimensionally equivalent to 11mm crimp top vials and 10-425 screw vials.
The 9-425 screw vials can be used in any autosampler which used 11mm crimp top vials and 10-425 screw vials.
» Compared to 11mm crimp top type, the 9-425 screw one can be much applied as hand removing convenient.
» The vials can be used on all common autosamplers due to their technical geometry, preferentially they are found on Agilent, HTA, Shimadzu, Thermo, Varian,Waters, etc





Order Information



2ml 10-425 Screw neck autosampler vial

  • Wide opening enables easy filling with viscous materials.
  • Reduce the chances of bent or broken needles during sampling.
  • Broad range of Micro-Inserts . z Packed in a cleanroom class 100,000.
  • The vials are preferentially used on instruments of the following manufacturers: Jasco, Perkin Elmer, Shimadzu, Varian, Waters®, etc.
Order Information









2ml 11mm Crimp neck Autosampler vial

  • Standard vials for GC and HPLC
  • 40% larger opening than standard narrow opening vials enables easy filling and improves auto-sampler needle accuracy.
  • Provides the tightest seal.
  • Precision-formed neck for improved autosampler handling

Order Information







2ml 11mm Snap neck vial

  • 40% larger target area which makes it much safer for the autosampler needle.
  • Snap vials can be closed with either snap caps or crimp caps.
  • Snap cap vials cannot be pressurized but easy as push-on, pull-off by hand.
  • An audible click ensures a secure seal has been formed and that the cap is correctly aligned.
  • Precision-formed neck improves autosampler handling.

Order Information





4ml 13-425 Screw neck vial

  • 15x45mm vials have a 13-425 GPI thread and can hold up to 4ml of sample.
  • Use the 13 x 425 caps with septa for use as sample vials and with diffusion caps for wash vials.
  • With closed top screw seals, these vials can also be used as storage vials.
  • The vials are preferentially used on instruments of the following manufacturers: Dionex, Shimadzu(AOC-14/1400, LC-10A and the SIL-2AS), Spark, Varian, VWR (MERCK®)/ Agilent 6850 autosampler tray (G2880A), Perkin-Elmer Autosystem GC, Waters 48 position tray autosampler,etc.

Order Information





Storage Vials 8ml, 12ml, 15ml, 20ml, 40ml


  • A complete new range of Screw Neck Vials with different volumes (8ml, 12ml, 15ml, 20ml and 40ml) has been added to the delivery programma, FX vials are ideal for sampling or storage or general laboratory use.
  • All vials are made of 1st hydrolytic class glass and are partially available in clear and amber glass.
  • Natural clear silicone septa and polypropylene caps are each in re-sealable plastic bags, with extra clean to eliminate sample contamination.

Order Information







Headspace Vials, Crimp neck

  • Chromlab Analytical high quality headspace vials have a Beveled Edge neck for a secure seal, uniform glass thickness for even heat distribution and consistent sampling reliability.
  • 20mm Crimp neck with 6ml, 10ml, 20ml hold up volume. Available in flat or rounded bottom designs for accurate instrument compatibility.
  • Pre-assembled 20 mm crimp caps with septa

Order Information





Headspace Vials, Precision Screw nec

  • The Screw Neck Vials ND18 with Magnetic Screw Seals for CTC is novelties in the crimp neck dominated Headspace market. However, especially for the hard to crimp magnetic caps, screw closures are a convenient alternative.
  • Reproduceable results, as untightnesses due to crimping faults by incorrectly adjusted or non-adjustable crimpers are excluded.
  • The vials are preferentially used on instruments : CTC

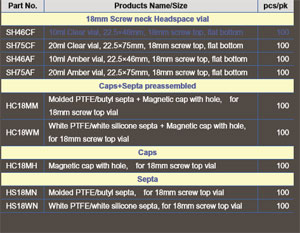

Order Information
